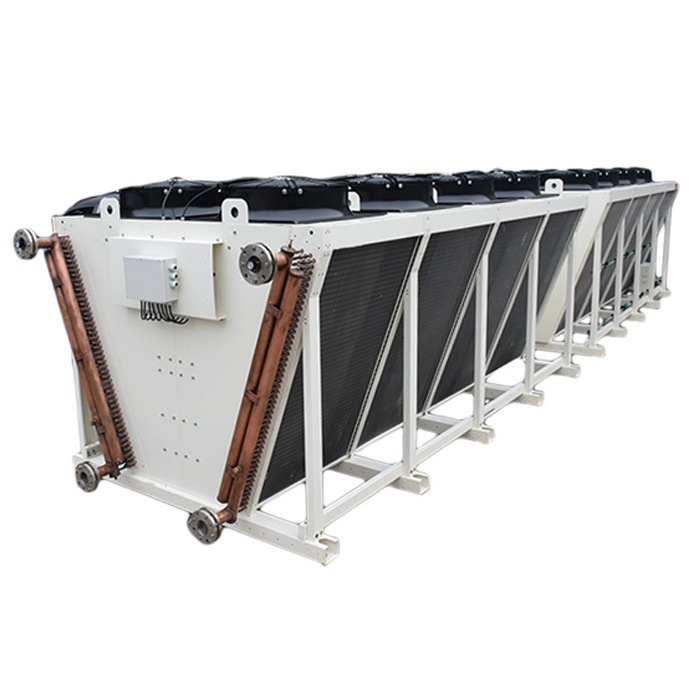

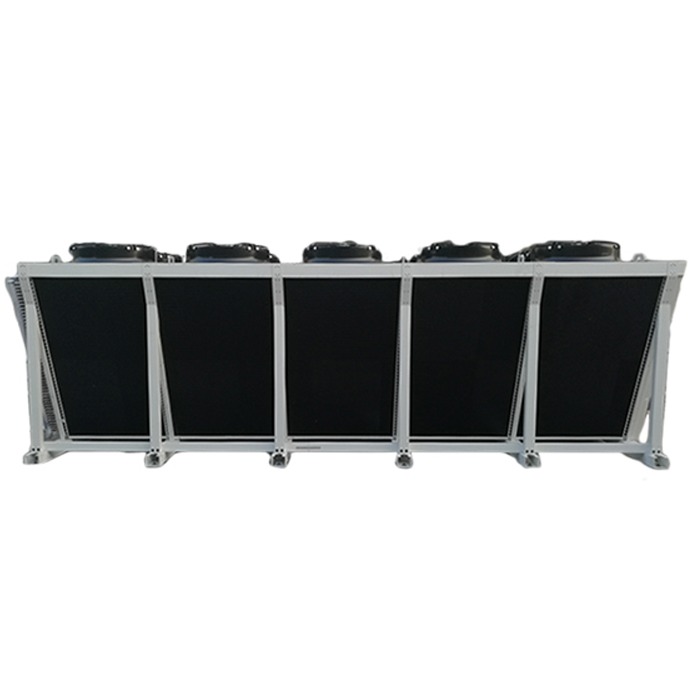

Dry Cooler For Bitcoin Mining Rig wanted-Choose Immersion Cooling Manufacturer

Air discharge direction
Performance ranges	Cooling capacity: from 148 to 921 kw Air volume: from 76459 to 351663 m3/h Sound pressure level: from 64 to 73 dB A(10m) Dry coolers:customized on demand
High efficiency heat exchanger	Capacity designs for maximizing the heat transfer relative to the energy consumption of the fan. Tube and tube coupling design for low pressure drop in the coil on the media sides(maximum 100KPa at water designing condition). Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany
Fan	Only choose low specific energy consumption fans. Fan nozzle designs for maximum air flow and air throw. Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long lasting. Motor: protection class IP 54 and insulation class F. Voltage：400V/3N/50Hz Air separator for each fan.
Testing	Heat exchangers are supplied clean and tested at a pressure of 30 bars
Options	Coil design refrigerant: water, oil, glycol. Multiple circuits. Sub-cooling circuits. Stainless steel or aluminum casing. Coated aluminum or copper fins. Explosion ploof motor. Customized fin spacing.

Dry cooler SHSL-D2 series parameter(fin space 2.1mm)

Type				SHSL-D2-148-4x630	SHSL-D2-166-4x630	SHSL-D2-175-4x630	SHSL-D2-228-6x630	SHSL-D2-250-6x630	SHSL-D2-276-6x630	SHSL-D2-310-8x630	SHSL-D2-343-8x630	SHSL-D2-364-8x630	SHSL-D2-392-10x630
Capacity	Water	KW		147.99	165.85	175.21	227.85	250.42	276.53	309.85	342.73	364.07	391.99
Capacity	20% Et. Glycol	KW		142.42	161.57	170.91	219.09	244.69	270.22	301.18	333.55	354.64	383.3
Air flow		M3/h		76459	74341	72134	114686	111511	108188	152911	148675	144255	191136
Fan		No. X φ		2x2x630	2x2x630	2x2x630	2x3x630	2x3x630	2x3x630	2x4x630	2x4x630	2x4x630	2x5x630
Fan motor 400/3N/50HZ		A		20.4	20.4	20.4	30.6	30.6	30.6	40.8	40.8	40.8	51.00
Sound pressure level		dB(A)10m		64	64	64	66	66	66	67	67	67	68
Dimension		L	mm	2186	2186	2186	3250	3250	3250	4250	4250	4250	5250
		H	mm	1874	1874	1874	1874	1874	1874	1874	1874	1874	1874
		D	mm	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100
		D1	mm	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000
		L1	mm	963	963	963	963	963	963	963	963	963	963
		L2	mm	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
		L3	mm	1963	1963	1963	2963	2963	2963	3963	3963	3963	4963
Connections inlet φ			mm	2XDN50	2XDN65	2XDN65	2XDN65	2XDN80	2XDN80	2XDN80	2XDN80	2XDN100	2XDN100
Connections onlet φ			mm	2XDN50	2XDN65	2XDN65	2XDN65	2XDN80	2XDN80	2XDN80	2XDN80	2XDN100	2XDN100
Product weight(empty)			kg	769	811	853	1134	1197	1261	1498	1589	1673	1864

Type				SHSL-D2-426-10x630	SHSL-D2-445-12x630	SHSL-D2-517-12x630	SHSL-D2-525-14x630	SHSL-D2-601-14x630	SHSL-D2-596-16x630	SHSL-D2-692-16x630	SHSL-D2-676-18x630	SHSL-D2-783-18x630	SHSL-D2-921-20x630
Capacity	Water	KW		426.15	444.78	516.67	524.70	601.41	595.59	692.11	676.02	783.03	921.23
Capacity	20% Et. Glycol	KW		413.85	427.83	504.38	507.90	586.16	572.94	676.71	653.42	767.64	905.78
Air flow		M3/h		182123	229377	218543	267604	254816	301325	290850	338987	327612	351663
Fan		No. X φ		2X5X630	2X6X630	2X6X630	2X7X630	2X7X630	2X8X630	2X8X630	2X9X630	2X9X630	2X10X630
Fan motor 400/3N/50HZ		A		51.00	61.20	61.20	71.40	71.40	81.60	81.60	91.80	91.80	102.00
Fan motor 400/3N/50HZ		kW		27.50	33.00	33.00	38.50	38.50	44.00	44.00	49.50	49.50	55.00
Sound pressure level		dB(A)10m		68	69	69	70	70	71	71	72	72	73
Dimension		L	mm	5250	6250	6250	7250	7250	8250	8250	9250	9250	10250
		H	mm	1874	1874	1874	1874	1874	1874	1874	1874	1874	1874
		D	mm	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100
		D1	mm	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000
		L1	mm	963	963	963	963	963	963	963	963	963	963
		L2	mm	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
		L3	mm	4963	5963	5963	6963	6963	7963	7963	8963	8963	9963
Connections inlet φ			mm	2XDN100	2XDN100	2XDN100	2XDN100	2XDN125	2XDN125	2XDN125	2XDN125	2XDN125	4XDN1100
Connections onlet φ			mm	2XDN100	2XDN100	2XDN100	2XDN100	2XDN125	2XDN125	2XDN125	2XDN125	2XDN125	4XDN1100
Product weight(empty)			kg	2193	2224	2617	2586	3259	3244	3728	3643	4226	4283

Industrial field: process engineering, heat / power plant, power generation, chemical industry, air conditioning chiller, heat transformer, smelting, etc.. It is suitable for all equipment which needs heat dissipation and is installed in the open air.
